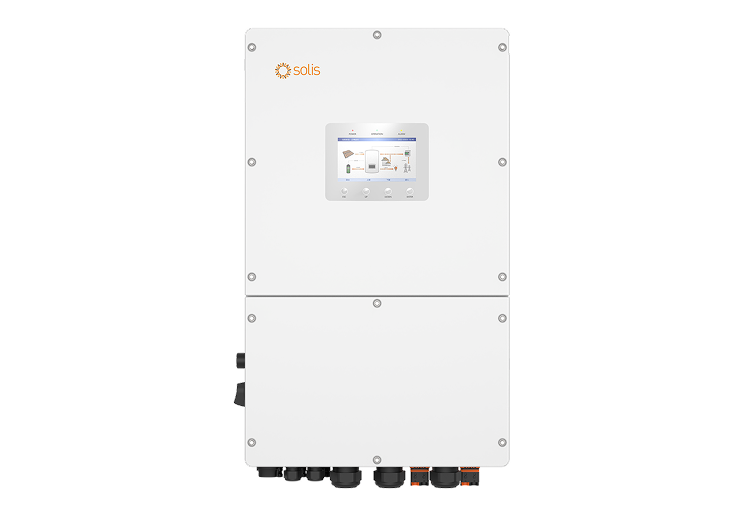

Solis S6-EH3P hybrid inverter (30–60) kW · three-phase · high voltage

Solis S6-EH3P (30–60 kW) is a powerful three-phase high-voltage hybrid inverter for commercial facilities and enterprises. It supports 150–800 V batteries, features 4–6 MPPTs, delivers backup power (UPS <10 ms) and scales to 6 units in parallel.

Models

1 / 1

Solis S6-EH3P hybrid inverter (30–60) kW · three-phase · high voltage · 30K

Overview

Solis S6-EH3P (30–60 kW) is an ultra-high-power industrial-class three-phase hybrid inverter for building large off-grid and energy-independence systems. Rated from 30 to 60 kW, the series targets large enterprises, production workshops, agricultural complexes, shopping centres, business parks and hotel complexes with a three-phase supply.

The model works with large-capacity high-voltage battery arrays. The high bus voltage minimises current losses and cable heating, guarantees maximum efficiency and delivers ultra-fast battery charging and discharging during short windows of grid availability or generator operation.

The inverter is designed for maximum flexibility: a multi-channel MPPT tracker system and support for 21 A per string allow large PV fields to be connected across different roof pitches or façades using the most powerful modern PV modules. The unit switches to backup power instantly, within 10 ms, and easily copes with the enormous inrush currents of industrial machine tools, pumping stations, ventilation systems and refrigeration plants.

Solis S6-EH3P (30–60)K-H offers the full range of intelligent energy management: diesel generator compatibility, Zero Export, peak shaving and parallel connection of multiple units to create megawatt-class off-grid networks.

Technical specifications

Models

SKU: S6-EH3P30K-H(21A)

DC input (PV side)

Recommended max. PV array size: 60 kW
Recommended max. PV array size: 80 kW
Recommended max. PV array size: 100 kW
Recommended max. PV array size: 100 kW
Max. usable PV module input power: 60 kW
Max. usable PV module input power: 80 kW
Max. usable PV module input power: 100 kW
Max. usable PV module input power: 100 kW
Maximum input voltage: 1000 V
Rated voltage: 600 V
Start-up voltage: 180 V
MPPT voltage range: 150 - 850 V
Max. input current: 3 × 42 A
Max. input current: 4 × 42 A
Max. input current: 4 × 42 A
Max. input current: 4 × 42 A
Max. current at the DC input: 42 A
Max. short-circuit current: 3 × 60 A
Max. short-circuit current: 4 × 60 A
Max. short-circuit current: 4 × 60 A
Max. short-circuit current: 4 × 60 A
Number of MPPTs / max. inputs per MPPT: 3 / 6
Number of MPPTs / max. inputs per MPPT: 4 / 8
Number of MPPTs / max. inputs per MPPT: 4 / 8
Number of MPPTs / max. inputs per MPPT: 4 / 8

Battery

Battery type: Lithium-ion
Battery voltage range: 150 - 800 V
Maximum charge / discharge current: 80 A × 2
Maximum charge / discharge current: 80 A × 2
Maximum charge / discharge current: 80 A × 2
Maximum charge / discharge current: 84 A × 2
Number of battery ports / BMS ports: 2
Maximum charge / discharge current of each port: 80 A
Maximum charge / discharge current of each port: 80 A
Maximum charge / discharge current of each port: 80 A
Maximum charge / discharge current of each port: 84 A
Communication: CAN

AC output (grid side)

Rated output power: 30 kW
Rated output power: 40 kW
Rated output power: 50 kW
Rated output power: 60 kW
Max. apparent output power: 30 kVA
Max. apparent output power: 40 kVA
Max. apparent output power: 50 kVA
Max. apparent output power: 60 kVA
Rated grid voltage: 3/N/PE, 220 V / 380 V, 230 V / 400 V
Rated grid frequency: 50 Hz / 60 Hz
Rated grid output current: 45.6 A / 43.3 A
Rated grid output current: 60.8 A / 57.7 A
Rated grid output current: 76 A / 72.2 A
Rated grid output current: 91.2 A / 86.6 A
Power factor: > 0.99 (-0.8 to +0.8)
THDi: < 3%

AC input (grid side)

Max. input power: 60 kW
Max. input power: 80 kW
Max. input power: 100 kW
Max. input power: 100 kW / 105 kW
Input voltage range: 304 - 460 V
Max. input current: 91.2 A / 86.6 A
Max. input current: 121.6 A / 115.4 A
Max. input current: 152 A / 144.4 A
Max. input current: 152 A / 152 A

AC output (backup output)

Rated output power: 30 kW
Rated output power: 40 kW
Rated output power: 50 kW
Rated output power: 60 kW
Max. apparent output power: 1.6× rated power, 2 s; 1.5× rated power, 10 s
Backup switchover time: < 10 ms
Rated output voltage: 3/N/PE, 220 V / 380 V, 230 V / 400 V
Rated frequency: 50 Hz / 60 Hz
Rated output current: 45.6 A / 43.3 A
Rated output current: 60.8 A / 57.7 A
Rated output current: 76 A / 72.2 A
Rated output current: 91.2 A / 86.6 A
Max. AC pass-through current: 45.6 A / 43.3 A
Max. AC pass-through current: 60.8 A / 57.7 A
Max. AC pass-through current: 76 A / 72.2 A
Max. AC pass-through current: 91.2 A / 86.6 A
THDv (at linear load): < 2%

AC input (generator side)

Max. input power: 30 kW
Max. input power: 40 kW
Max. input power: 50 kW
Max. input power: 60 kW
Rated input current: 45.6 A / 43.3 A
Rated input current: 60.8 A / 57.7 A
Rated input current: 76 A / 72.2 A
Rated input current: 91.2 A / 86.6 A
Rated input voltage: 3/N/PE, 220 V / 380 V, 230 V / 400 V
Rated input frequency: 50 Hz / 60 Hz

Efficiency

Maximum efficiency: 97.7%
European efficiency: 97.3%
Max. battery charging efficiency from PV / AC: 98.5% / 97.8%
Battery discharge efficiency: 97.5%

Protection

Surge protection: DC type II / AC type II
Overcurrent protection: Yes
Insulation resistance monitoring: Yes
Residual current detection: Yes
Built-in PV switch: Yes
DC reverse polarity protection: Yes
Ingress protection / overvoltage category: I / PV II, battery II, AC III
Built-in AFCI 2.0 module: Optional
Anti-islanding protection: Yes

General data

Maximum power per phase (grid and backup): 33% of rated power
Dimensions (W × H × D): 530 × 880 × 290 mm
Weight: 76 kg
Inverter topology: Non-isolated
Self-consumption: < 35 W
Operating temperature range: -25 ~ +60°C
Relative humidity: 0 - 100%
Ingress protection (IP): IP66
Cooling method: Fan with intelligent speed control
Max. operating altitude: 4000 m
Grid connection standard: NTS 631/RD 1699/UNE 217002, CEI 0-21, CEI 0-16, C10/11, NRS 097-2-1, TOR, EIFS 2018.2,
Safety / EMC standard: IEC/EN 62109-1/-2, IEC/EN 61000-6-2/-4, EN 55011
Battery connection: Terminal connectors
AC connection: OT terminal
Display: 7.0" LCD display and Bluetooth + app
Communication interface: Standard: Wi-Fi+LAN+Bluetooth, CAN-BMS×2, CAN-Parallel×2, RS485-Meter, RS485, DRM, DI×3, DO×3; optional: 4G

Documentation and certificates

Datasheet

Гібридний інвертор Solis S6-EH3P (30–60) кВт · трифазний · високовольтний.pdf

Download
Datasheet

S6-EH3P(29.9-60)K-Global-Flyer-V4.0_20260819161126.pdf

Download
User manual

Гібридний інвертор Solis S6-EH3P (30–60) кВт · трифазний · високовольтний_інструкція.pdf

Download
Certificate 1

Гібридний інвертор Solis S6-EH3P (30–60) кВт · трифазний · високовольтний_сертифікат1.pdf

Download
Certificate 2

Гібридний інвертор Solis S6-EH3P (30–60) кВт · трифазний · високовольтний_сертифікат2.pdf

Download
Certificate 3

Гібридний інвертор Solis S6-EH3P (30–60) кВт · трифазний · високовольтний_сертифікат3.pdf

Download
Certificate 4

Гібридний інвертор Solis S6-EH3P (30–60) кВт · трифазний · високовольтний_сертифікат4.pdf

Download
Certificate 5

Гібридний інвертор Solis S6-EH3P (30–60) кВт · трифазний · високовольтний_сертифікат5.pdf

Download
Certificate 6

Гібридний інвертор Solis S6-EH3P (30–60) кВт · трифазний · високовольтний_сертифікат6.pdf

Download
Certificate 7

Гібридний інвертор Solis S6-EH3P (30–60) кВт · трифазний · високовольтний_сертифікат7.pdf

Download

Frequently asked questions

Start from the site's average daily consumption and the peak load the inverter has to carry in off-grid mode. The power range of each modification and the recommended PV array size for it are listed in the product card under "Key specifications" — for a precise selection, contact a Solis dealer or use the form below.

Didn't find your answer?

The Solis Ukraine technical department advises on equipment compatibility, wiring diagrams and system configuration.
