Hybrid inverters for C&I

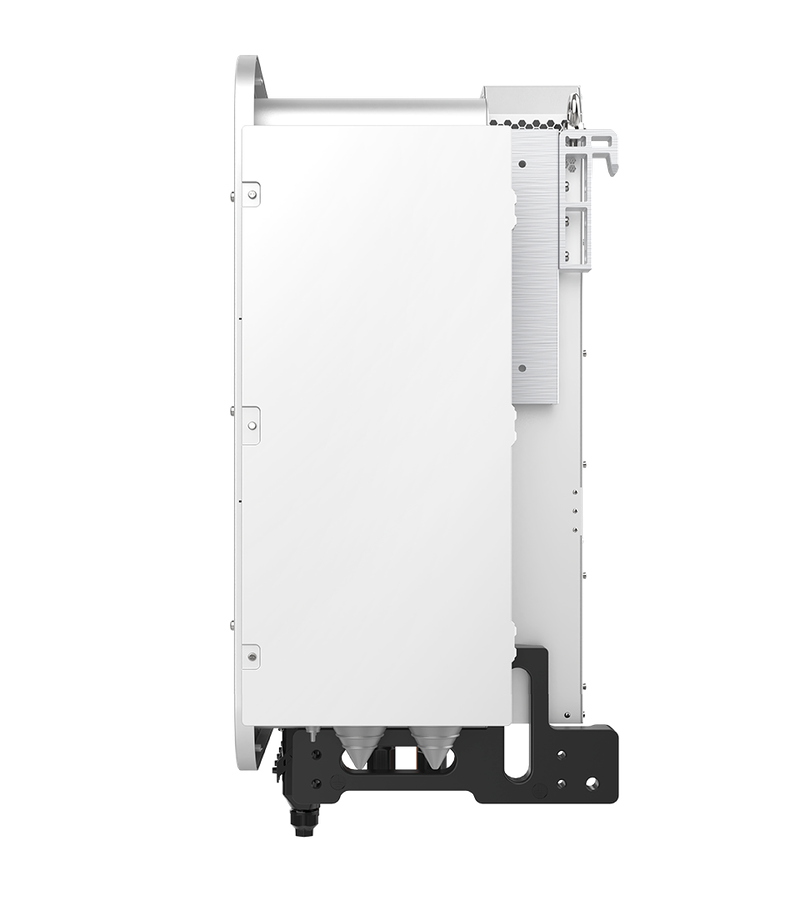

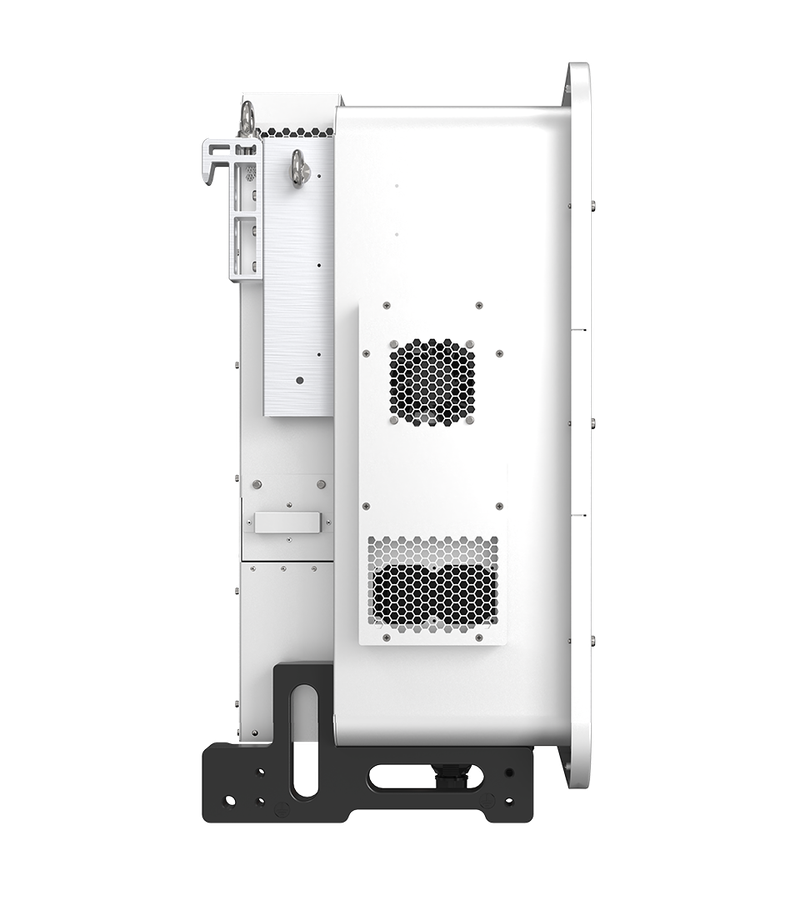

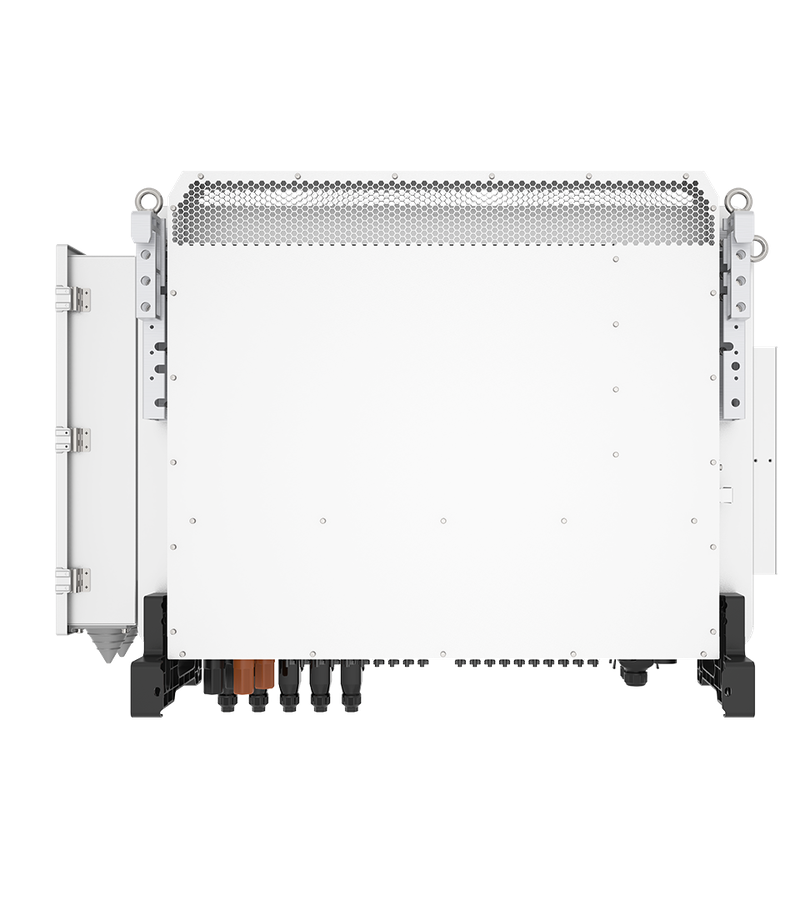

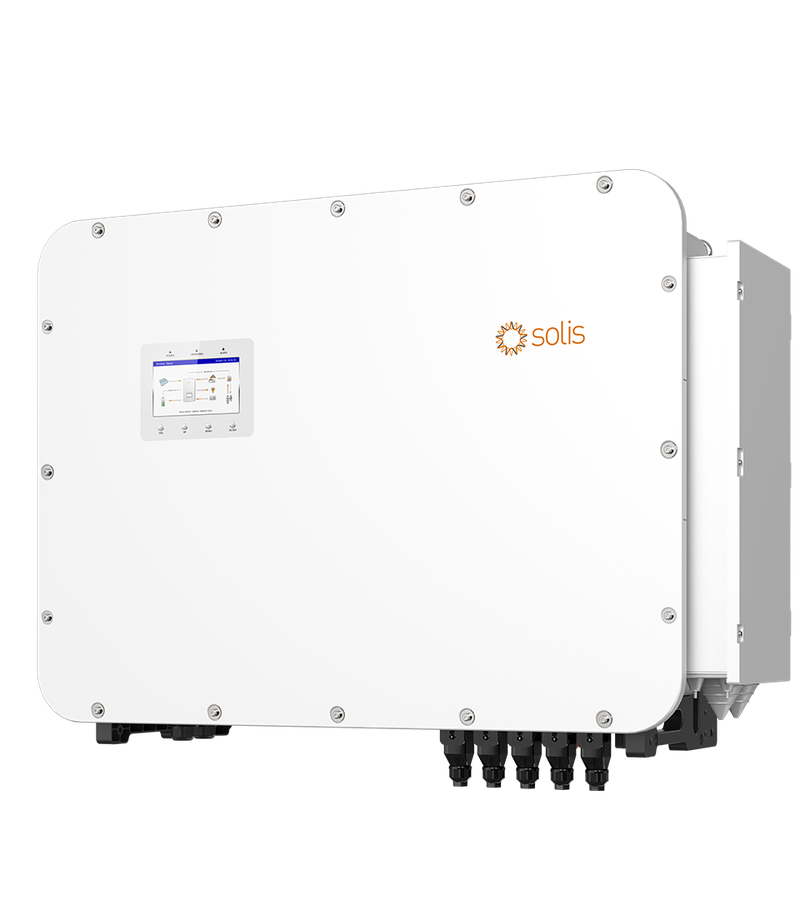

Solis S6-EH3P hybrid inverter (60–75) kW · three-phase · high voltage
Solis S6-EH3P (60–75 kW) is the flagship industrial-class three-phase high-voltage hybrid inverter for large commercial facilities and production sites. It supports high-voltage batteries (150–800 V), features 6 MPPT trackers, delivers instant backup power (UPS <10 ms) and supports parallel operation of up to 6 units.
Models
1 / 5
1 / 5
Overview
Solis S6-EH3P (60–75 kW) is an ultra-high-power three-phase high-voltage hybrid inverter for industrial and C&I applications. The series is intended for large industrial enterprises, factory workshops, agricultural complexes, data centres, logistics parks and shopping centres with energy-intensive infrastructure. The model is engineered to work with large-capacity industrial high-voltage battery systems. The high battery bus voltage minimises current losses in the cable run, raises system efficiency and delivers extremely high charge/discharge currents for rapid energy capture from the grid or a generator.
The inverter is engineered for large-scale PV arrays: an extended number of MPPT trackers (up to 10 MPPTs) handles high currents and delivers maximum compatibility with modern high-power bifacial PV modules. Switchover to backup power in under 10 ms keeps production processes uninterrupted, while a high overload capability confidently starts powerful industrial motors, pumping stations and refrigeration equipment.
Solis S6-EH3P (60–75)K10 supports cascading, integration with industrial diesel generators, Zero Export and peak shaving, plus dynamic reactive power compensation to reduce grid stress.
Key specifications
-
Power range (kW)
60–75
-
Grid phases
Three-phase (380 V)
-
Number of MPPT trackers
6+ MPPT
Key features
-
Supports up to twice the rated PV array capacity (up to 200%), maximising solar energy utilisation
-
Supports string current of up to 21 A, ensuring full compatibility with today's high-power solar modules
-
Compatible with 100-314 Ah battery packs, reducing the total cost of the whole system
-
Enables accelerated battery charging at currents of up to 200 A
-
Two independent battery ports for flexible configuration and easy capacity expansion
-
Withstands 200% overload for 200 ms in off-grid mode for confident starting of equipment with high inrush currents
-
Offers flexible control in weak-grid and generator scenarios, reducing upfront investment costs
-
SolisCloud: smart remote control, AI optimisation and instant diagnostics in a single platform
-
Combines generation and storage to manage peak consumption and prevent energy export to the grid (Zero Export)
-
Provides dynamic reactive power compensation to improve grid cos φ and cut reactive energy costs
Technical specifications
Models
SKU: S6-EH3P60K10-LV-YD-H
DC input (PV side)
- Recommended max. PV array size
- 120 kW
- Recommended max. PV array size
- 150 kW
- Max. usable PV module input power
- 120 kW
- Max. usable PV module input power
- 150 kW
- Maximum input voltage
- 1000 V
- Rated voltage
- 600 V
- Start-up voltage
- 180 V
- MPPT voltage range
- 150 - 950 V
- Max. input current
- 10 × 42 A
- Max. current at the DC input
- 42 A
- Max. short-circuit current
- 10 × 60 A
- Number of MPPTs / max. inputs per MPPT
- 10 / 20
Battery
- Battery type
- Lithium-ion
- Battery voltage range
- 300 - 950 V
- Maximum charge / discharge current
- 100 A × 2 / 100 A × 2
- Number of battery ports / BMS ports
- 2
- Max. charge / discharge current per port
- 100 A
- Communication
- CAN
AC output (grid side)
- Rated output power
- 60 kW
- Rated output power
- 75 kW
- Max. apparent output power
- 60 kVA
- Max. apparent output power
- 75 kVA
- Rated grid voltage
- 3/(N)/PE, 127 V / 220 V, 133 V / 230 V
- Rated grid frequency
- 50 Hz / 60 Hz
- Rated grid output current
- 157.5 A / 150.6 A
- Rated grid output current
- 196.8 A / 188.2 A
- Power factor
- > 0.99 (0.8 leading - 0.8 lagging)
- THDi
- < 3%
AC input (grid side)
- Max. input power
- 95.2 kW / 99.6 kW
- Input voltage range
- 176 - 265 V
- Max. input current
- 250 A
AC output (backup output)
- Rated output power
- 60 kW
- Rated output power
- 75 kW
- Max. apparent output power
- 2 times of rated power, 200 ms
- Max. apparent output power
- 1.6 times of rated power, 200 ms
- Backup switchover time
- < 10 ms
- Rated output voltage
- 3/(N)/PE, 127 V / 220 V, 133 V / 230 V
- Rated frequency
- 50 Hz / 60 Hz
- Rated output current
- 157.5 A / 150.6 A
- Rated output current
- 196.8 A / 188.2 A
- Max. AC pass-through current
- 157.5 A / 150.6 A
- Max. AC pass-through current
- 196.8 A / 188.2 A
- THDv (at linear load)
- < 3%
AC input (generator side)
- Max. input power
- 60 kW
- Max. input power
- 75 kW
- Rated input current
- 157.5 A / 150.6 A
- Rated input current
- 196.8 A / 188.2 A
- Rated input voltage
- 3/(N)/PE, 127 V / 220 V, 133 V / 230 V
- Rated input frequency
- 50 Hz / 60 Hz
Efficiency
- Maximum efficiency
- 96.0%
- European efficiency
- 94.5%
- European efficiency
- 94.6%
- Max. battery charging efficiency from PV / AC
- 97.6% / 95.6%
- Battery discharge efficiency
- 95.6%
Protection
- Surge protection
- DC Type II / AC Type II
- Output circuit overcurrent protection
- Yes
- Insulation resistance monitoring
- Yes
- Residual current detection
- Yes
- Built-in PV switch
- Yes
- DC reverse polarity protection
- Yes
- Ingress protection / overvoltage category
- I / DC II, AC III
- Built-in AFCI 2.0 module
- Optional
- Anti-islanding protection
- Yes
General data
- Max. power per phase (grid and backup)
- 33% rated power
- Dimensions (W × H × D)
- 1174 × 814 × 400 mm
- Weight
- 170 kg
- Inverter topology
- Non-isolated
- Self-consumption
- < 45 W
- Operating temperature range
- -25 ~ +60°C
- Relative humidity
- 0 - 100%
- Ingress protection (IP)
- IP66
- Cooling method
- Intelligent redundant fan cooling
- Max. operating altitude
- 3000 m
- Grid connection standard
- G99, EN 50549-1&2/EN 50549-10, C10/11, IEC 62116, IEC 61727, PORTARIA Nº 140, PORTARIA Nº 515
- Safety / EMC standard
- IEC/EN 62109-1/-2, IEC/EN 61000-6-2/-4, EN 55011
Features
- PV connection
- MC4 connector
- Battery connection
- Terminal connector
- AC connection
- Terminal block
- Display
- 7.0" LCD display & Bluetooth + APP
Documentation and certificates
-
DownloadDatasheet
S6-EH3P(60-75)K-Global-Flyer-V4.2_20260819145711.pdf
Frequently asked questions
-
Start from the site's average daily consumption and the peak load the inverter has to carry in off-grid mode. The power range of each modification and the recommended PV array size for it are listed in the product card under "Key specifications" — for a precise selection, contact a Solis dealer or use the form below.
-
The list of validated batteries is published on the product page — in the compatible-equipment section, where one has already been compiled for that model. The voltage range (LV or HV, depending on the series) is stated in the technical specifications either way. If there is no list, or the battery you need is not on it, contact the Solis Ukraine technical department — compatibility should be confirmed separately.
-
Most Solis hybrid and off-grid inverters support connecting a generator with automatic start-up when the battery is discharged. Whether a specific model has this function, and how it is wired, is stated under "Key features" and in the "Technical specifications" table of the product card.
-
It depends on the series: single-phase models are designed for a 220 V grid, three-phase models for 380/400 V. The exact connection type for a given product is stated in the "Grid phases" card under "Key specifications".
-
Solis equipment carries the manufacturer's warranty, which in Ukraine is administered by official dealers and authorised service centres. The exact term and conditions are stated on the warranty card and on the device's rating plate — for registration and the claim procedure, see the Support section.
Didn't find your answer?
The Solis Ukraine technical department advises on equipment compatibility, wiring diagrams and system configuration.
