Single-phase grid-tied

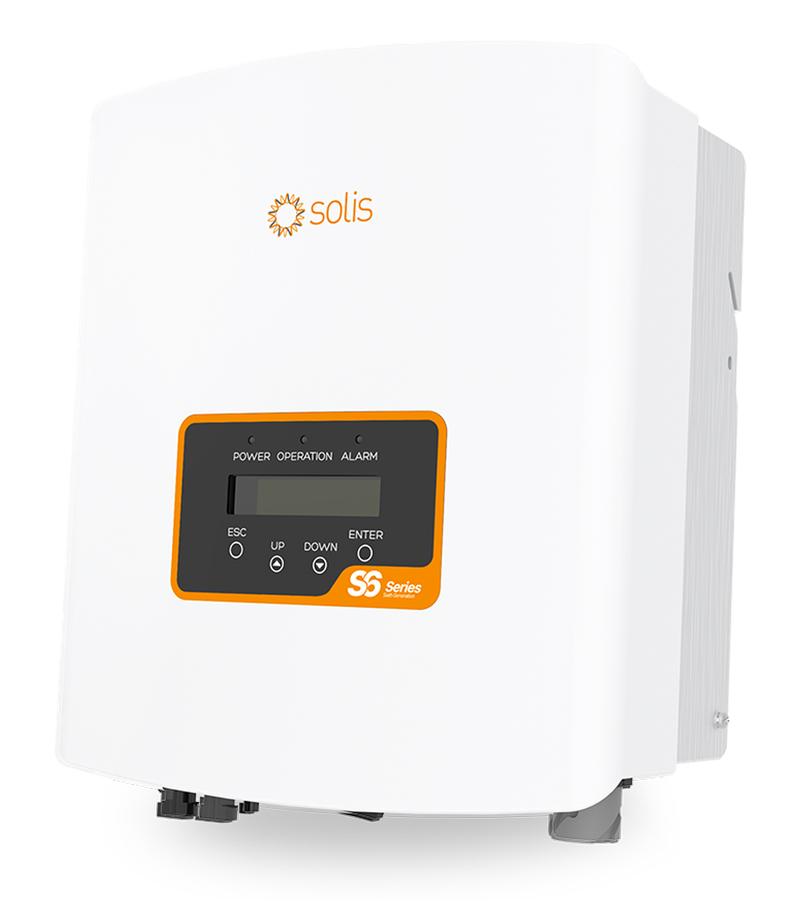

Solis S6-GR1P grid-tied inverter (0.7–3.6) kW · single-phase

Solis S6-GR1P (0.7–3.6 kW) is a compact and silent single-phase grid-tied inverter from the S6 series, designed for residential solar power plants operating for self-consumption or under a feed-in tariff. It offers a high efficiency of up to 97.7%, an ultra-low start-up voltage from 60 V and built-in intelligent arc-fault protection (AFCI).

Models

1 / 5

Solis S6-GR1P grid-tied inverter (0.7–3.6) kW · single-phase · 0.7K

Overview

Solis S6-GR1P (0.7–3.6 kW) is a compact single-phase grid-tied inverter for micro solar power plants running on self-consumption or the feed-in tariff. It is ideal for flats, holiday homes, private houses and small businesses with a basic daytime load.

The model operates without batteries, feeding the solar energy it generates directly to your appliances. This dramatically cuts daytime electricity bills and delivers the fastest payback, since there is no battery expenditure.

The inverter supports an input current of up to 14 A, making it fully compatible with modern high-power PV modules. Thanks to its low start-up voltage, the unit switches on earlier and runs longer through the day, extracting the maximum number of kilowatt-hours from every ray of sunlight.

With fanless passive cooling, the inverter runs completely silently and installs easily even in living areas. The unit features arc-fault protection (AFCI), supports Wi-Fi monitoring and offers grid export limitation.

Technical specifications

Models

SKU: S6-GR1P0.7K-M

DC input

Recommended maximum input power: 1.1 kW
Recommended maximum input power: 1.5 kW
Recommended maximum input power: 2.3 kW
Recommended maximum input power: 3 kW
Recommended maximum input power: 3.8 kW
Recommended maximum input power: 4.5 kW
Recommended maximum input power: 5.4 kW
Maximum input voltage: 600 V
Rated voltage: 200 V
Rated voltage: 200 V
Rated voltage: 200 V
Rated voltage: 330 V
Rated voltage: 330 V
Rated voltage: 330 V
Rated voltage: 330 V
Start-up voltage: 60 V
Start-up voltage: 60 V
Start-up voltage: 60 V
Start-up voltage: 90 V
Start-up voltage: 90 V
Start-up voltage: 90 V
Start-up voltage: 90 V
MPPT voltage range: 50 - 500 V
MPPT voltage range: 50 - 500 V
MPPT voltage range: 50 - 500 V
MPPT voltage range: 80 - 500 V
MPPT voltage range: 80 - 500 V
MPPT voltage range: 80 - 500 V
MPPT voltage range: 80 - 500 V
Max. input current: 14 A
Max. input current: 14 A
Max. input current: 14 A
Max. input current: 14 A
Max. input current: 14 A
Max. input current: 14 A
Max. input current: 19 A
Max. short-circuit current: 22 A
Max. short-circuit current: 22 A
Max. short-circuit current: 22 A
Max. short-circuit current: 22 A
Max. short-circuit current: 22 A
Max. short-circuit current: 22 A
Max. short-circuit current: 24 A
Number of MPPTs / max. inputs per MPPT: 1 / 1
Number of MPPTs / max. inputs per MPPT: 1 / 1
Number of MPPTs / max. inputs per MPPT: 1 / 1
Number of MPPTs / max. inputs per MPPT: 1 / 1
Number of MPPTs / max. inputs per MPPT: 1 / 1
Number of MPPTs / max. inputs per MPPT: 1 / 1
Number of MPPTs / max. inputs per MPPT: 1 / 2

AC output

Rated output power: 0.7 kW
Rated output power: 1 kW
Rated output power: 1.5 kW
Rated output power: 2 kW
Rated output power: 2.5 kW
Rated output power: 3 kW
Rated output power: 3.6 kW
Max. apparent output power: 0.77 kVA
Max. apparent output power: 1.1 kVA
Max. apparent output power: 1.65 kVA
Max. apparent output power: 2.2 kVA
Max. apparent output power: 2.75 kVA
Max. apparent output power: 3.3 kVA
Max. apparent output power: 3.6 kVA
Rated grid voltage: 1/N/PE, 220 V / 230 V
Rated grid frequency: 50 Hz / 60 Hz
Rated grid output current: 3.2 A / 3.0 A
Rated grid output current: 4.5 A / 4.3 A
Rated grid output current: 6.8 A / 6.5 A
Rated grid output current: 9.1 A / 8.7 A
Rated grid output current: 11.4 A / 10.9 A
Rated grid output current: 13.6 A / 13 A
Rated grid output current: 16 A
Max. output current: 4.4 A
Max. output current: 5.2 A
Max. output current: 8.1 A
Max. output current: 10.5 A
Max. output current: 13.3 A
Max. output current: 15.7 A
Max. output current: 16 A
Power factor: > 0.99 (-0.8 to +0.8)
THDi: < 3%

Efficiency

Maximum efficiency: 96.6%
Maximum efficiency: 96.6%
Maximum efficiency: 96.6%
Maximum efficiency: 97.1%
Maximum efficiency: 97.1%
Maximum efficiency: 97.1%
Maximum efficiency: 97.3%
European efficiency: 95.3%
European efficiency: 95.3%
European efficiency: 95.4%
European efficiency: 96.4%
European efficiency: 96.7%
European efficiency: 96.7%
European efficiency: 96.8%

Protection

DC reverse polarity protection: Yes
Short-circuit protection: Yes
Overcurrent protection: Yes
Surge protection: Yes
Grid monitoring: Yes
Anti-islanding protection: Yes
Temperature protection: Yes
Multi-peak scanning: Yes
Built-in AFCI module: Yes
Built-in DC disconnector: Yes

General data

Dimensions (W × H × D): 310 × 373 × 160 mm
Weight: 7.4 kg
Weight: 7.4 kg
Weight: 7.4 kg
Weight: 7.4 kg
Weight: 7.7 kg
Weight: 7.7 kg
Weight: 7.7 kg
Inverter topology: Transformerless
Self-consumption: < 1 W
Ambient operating temperature range: -25 ~ +60°C
Relative humidity: 0 - 100%
Ingress protection (IP): IP66
Noise level (typical): < 20 dB(A)
Cooling method: Natural cooling
Max. operating altitude: 4000 m
Grid connection standard: UNE 206006/UNE 206007-1, CEI 0-21, C10/11, TOR, NRS 097-2-1, EIFS 2018.2, IEC 62116, IEC 61727,
Safety / EMC standard: IEC/EN 62109-1/-2, IEC/EN 61000-6-1/-2/-3/-4

Features

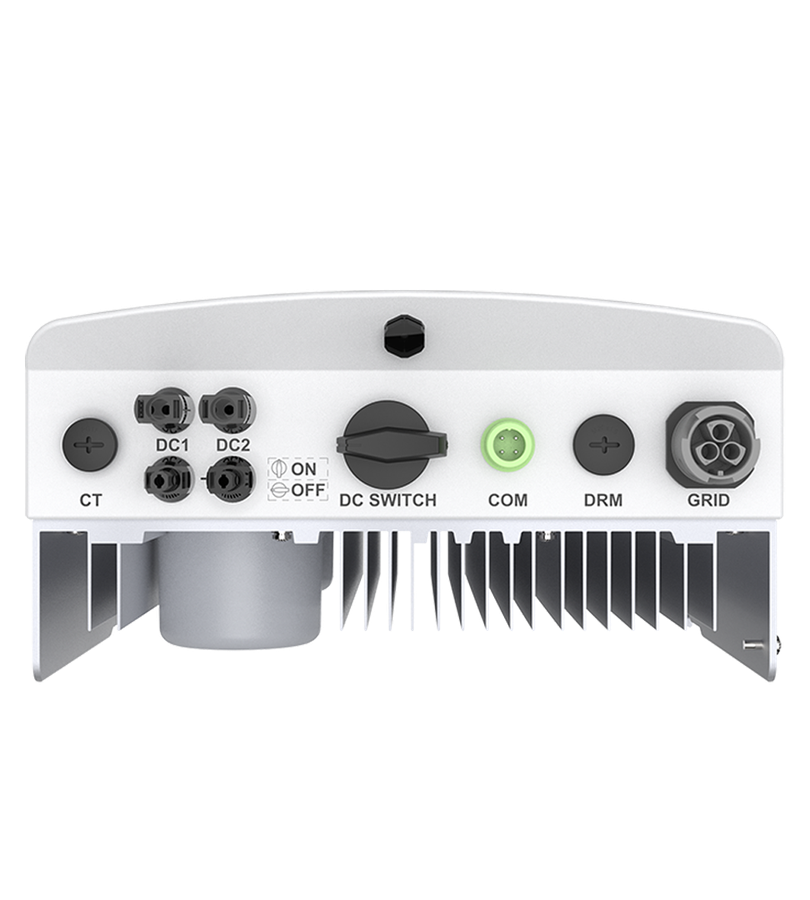

DC connection: MC4 connector
AC connection: Quick-connect connector
Display: LCD screen
Communication: RS485, optional: Wi-Fi, GPRS
