Inverters for utility-scale systems

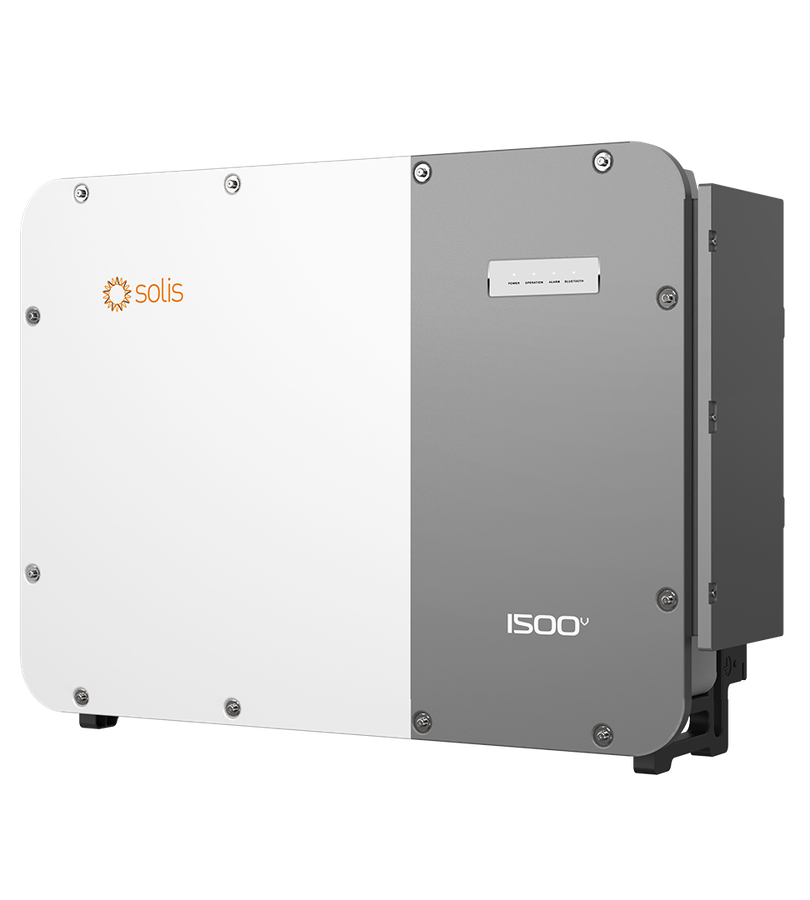

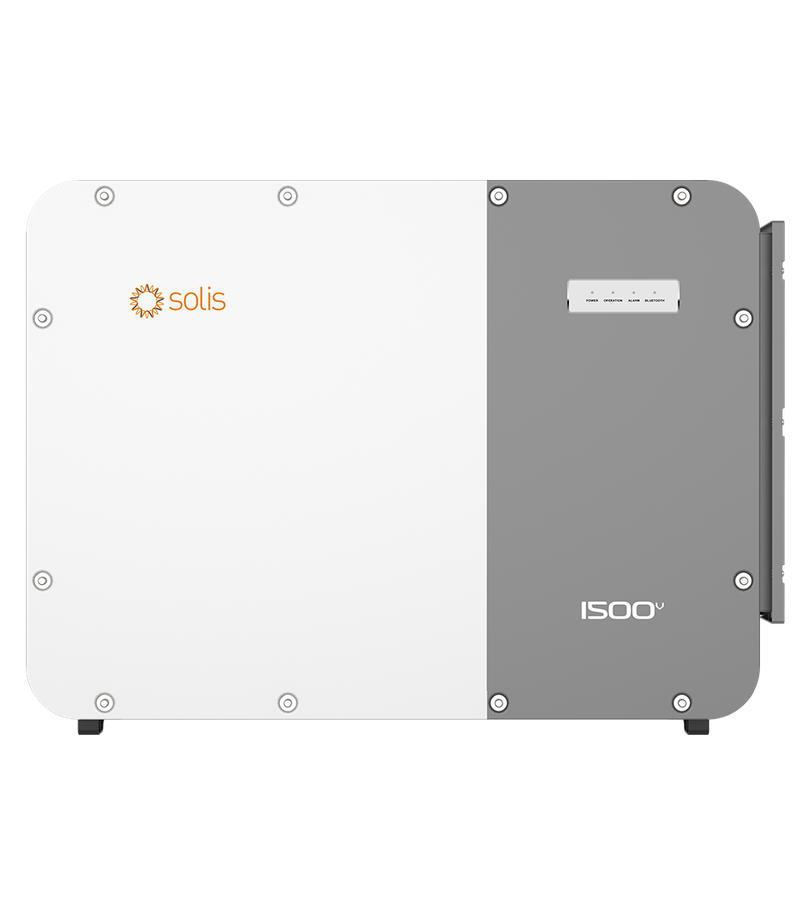

Solis S6-GU3P industrial grid-tied inverter (275–350) kW
Solis S6-GU3P (275–350 kW) is an ultra-high-power three-phase grid-tied inverter from the S6 series for industrial and utility-scale high-voltage solar power plants (up to 1500 V DC). It features up to 12–16 MPPT trackers supporting high-current panels, delivers a maximum efficiency of over 99.0% and supports intelligent I-V curve diagnostics together with AFCI protection.
Models
1 / 5
1 / 5
Overview
Solis S6-GU3P (275–350 kW) is an ultra-high-power utility-scale three-phase grid-tied inverter from the sixth series (S6). The model is engineered for megawatt solar power plants, ground-mounted industrial installations and large commercial sites with high-voltage grid connections.
The device converts solar energy directly into a high-voltage three-phase grid without using batteries. This delivers the lowest levelised cost of energy (LCOE), maximum return on investment and rapid payback on large-scale energy projects.
The inverter features a multi-channel MPPT tracker system with support for ultra-high input currents, guaranteeing full compatibility with modern large-format bifacial PV modules in the 182/210 mm cell format. High power density and an advanced cooling system allow the inverter to operate reliably under extreme loads and high ambient temperatures.
Solis S6-GU3P (275–350)K achieves a peak efficiency above 99%, a high IP66 ingress protection rating, integrated arc-fault protection (AFCI) and Type II surge protection, smart I-V curve trace diagnostics, reactive power regulation and integration with digital plant control systems through SolisCloud.
Key specifications
-
Power range (kW)
275–350
-
Grid phases
Three-phase (380 V)
-
Number of MPPT trackers
6+ MPPT
Key features
-
24/30 inputs, > 150% DC / AC ratio
-
Maximum MPPT current of 70 A/80 A, compatible with 182 and 210 series bifacial modules
-
Patented heat-transfer technology delivers a continuous 5% power gain at high temperatures Smart
-
Intelligent flow control and smart I-V curve scanning
-
Online ground-fault detection for fast fault identification
-
Low-temperature antifreeze protection, reverse dust purging and indoor air dehumidification
-
IP66, C5 anti-corrosion rating
-
Intelligent string shutdown, remote DC switch disconnection, active safety
-
Intelligent temperature detection on AC/DC terminals Cost-effective
-
Inverter with a 30 ms response to reactive power changes — can replace an SVG
Technical specifications
Models
SKU: S6-GU3P275K06-EV-ND
DC input
- Maximum input voltage
- 1500 V
- Rated voltage
- 1080 V
- Start-up voltage
- 500 V
- MPPT voltage range
- 480 - 1500 V
- Max. input current
- 6 × 70 A
- Max. input current
- 6 × 80 A
- Max. short-circuit current
- 6 × 105 A
- Max. short-circuit current
- 6 × 125 A
- Number of MPPTs / max. inputs per MPPT
- 6 / 24
- Number of MPPTs / max. inputs per MPPT
- 6 / 30
AC output
- Rated output power
- 275 kW
- Rated output power
- 350 kW
- Max. apparent output power
- 275 kVA
- Max. apparent output power
- 350 kVA
- Rated grid voltage
- 3/PE, 800 V
- Grid voltage range
- 640 - 920 V
- Rated grid frequency
- 50 Hz / 60 Hz
- Max. output current
- 198.5 A
- Max. output current
- 252.6 A
- Power factor
- > 0.99 (-0.8 to +0.8)
- THDi
- < 3%
Efficiency
- Maximum efficiency
- 99.0%
- European efficiency
- 98.7%
Protection
- DC reverse polarity protection
- Yes
- Short-circuit protection
- Yes
- Overcurrent protection
- Yes
- Surge protection
- DC type II / AC type II
- Grid monitoring
- Yes
- Anti-islanding protection
- Yes
- Temperature protection
- Yes
- String monitoring
- Yes
- I-V curve measurement
- Yes
- Night-time SVG function
- Yes
- Built-in PID Recovery function
- Yes
- Built-in DC disconnector
- Yes
General data
- Dimensions (W × H × D)
- 1098 × 813 × 378.5 mm
- Weight
- 117 kg
- Weight
- 119 kg
- Inverter topology
- Transformerless
- Self-consumption
- < 3 W
- Ambient operating temperature range
- -30 ~ +60°C
- Relative humidity
- 0 - 100%
- Ingress protection (IP)
- IP66
- Cooling method
- Intelligent fan cooling
- Max. operating altitude
- 4000 m
- Grid connection standard
- EN50549, G99, VDE0126, IEC61727, VDE4110, CEA 2019
- Safety / EMC standard
- IEC62109-1/-2, IEC61000-6-2/-4
Features
- DC connection
- Matching connector
- AC connection
- OT terminal (max. 400 mm²)
- Display
- LED indicator and Bluetooth + app
- Communication
- RS485, optional: PLC
Documentation and certificates
-
DownloadDatasheet
Промисловий мережевий інвертор Solis S6-GU3P (275–350) кВт.pdf
-
DownloadUser manual
Промисловий мережевий інвертор Solis S6-GU3P (275–350) кВт_інструкція.pdf
-
DownloadCertificate 1
Промисловий мережевий інвертор Solis S6-GU3P (275–350) кВт_сертифікат1.pdf
-
Download
Certificate 2
Промисловий мережевий інвертор Solis S6-GU3P (275–350) кВт_сертифікат2.pdf
-
Download
Certificate 3
Промисловий мережевий інвертор Solis S6-GU3P (275–350) кВт_сертифікат3.pdf
-
Download
Certificate 4
Промисловий мережевий інвертор Solis S6-GU3P (275–350) кВт_сертифікат4.pdf
-
Download
Certificate 5
Промисловий мережевий інвертор Solis S6-GU3P (275–350) кВт_сертифікат5.pdf
Frequently asked questions
-
Start from the site's average daily consumption and the peak load the inverter has to carry in off-grid mode. The power range of each modification and the recommended PV array size for it are listed in the product card under "Key specifications" — for a precise selection, contact a Solis dealer or use the form below.
-
The list of validated batteries is published on the product page — in the compatible-equipment section, where one has already been compiled for that model. The voltage range (LV or HV, depending on the series) is stated in the technical specifications either way. If there is no list, or the battery you need is not on it, contact the Solis Ukraine technical department — compatibility should be confirmed separately.
-
Most Solis hybrid and off-grid inverters support connecting a generator with automatic start-up when the battery is discharged. Whether a specific model has this function, and how it is wired, is stated under "Key features" and in the "Technical specifications" table of the product card.
-
It depends on the series: single-phase models are designed for a 220 V grid, three-phase models for 380/400 V. The exact connection type for a given product is stated in the "Grid phases" card under "Key specifications".
-
Solis equipment carries the manufacturer's warranty, which in Ukraine is administered by official dealers and authorised service centres. The exact term and conditions are stated on the warranty card and on the device's rating plate — for registration and the claim procedure, see the Support section.
Didn't find your answer?
The Solis Ukraine technical department advises on equipment compatibility, wiring diagrams and system configuration.
