Grid-tied inverters for C&I

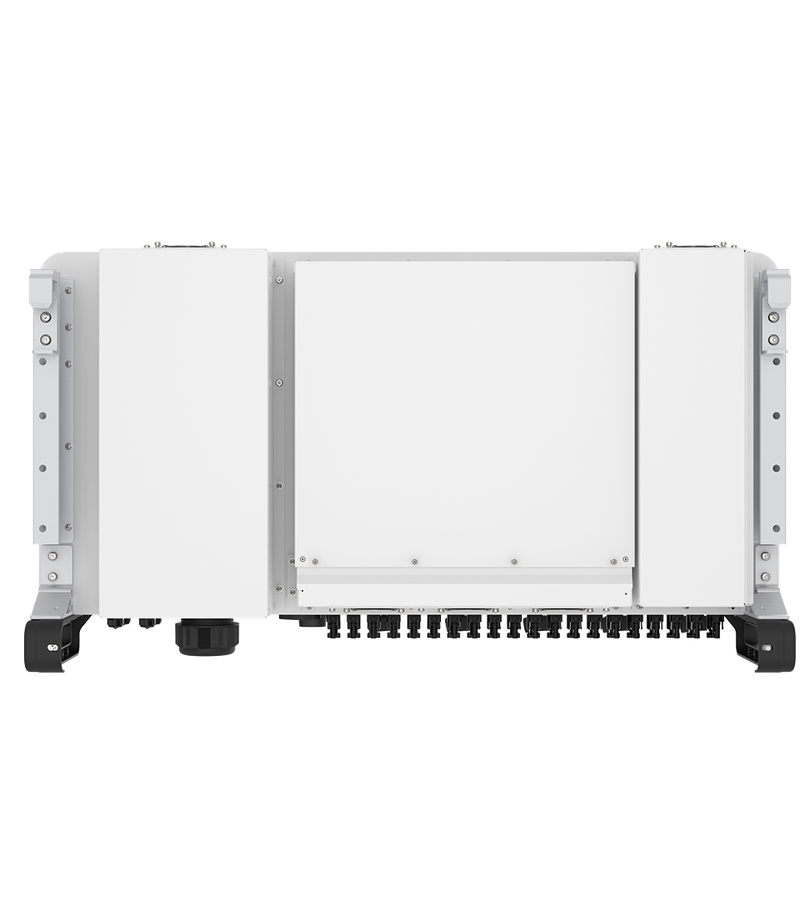

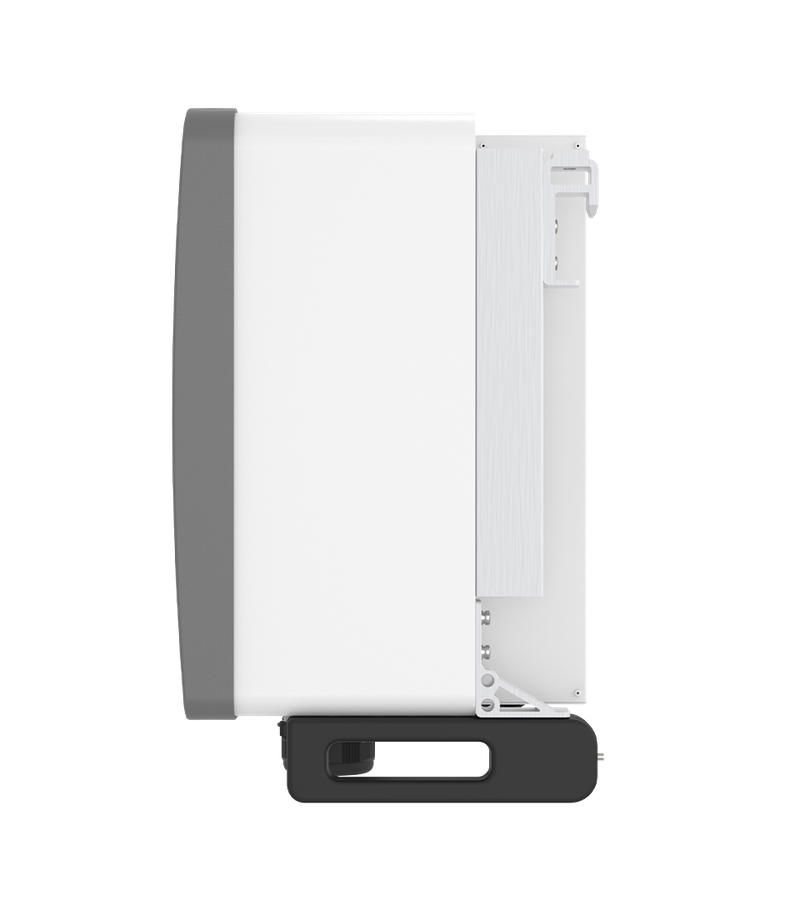

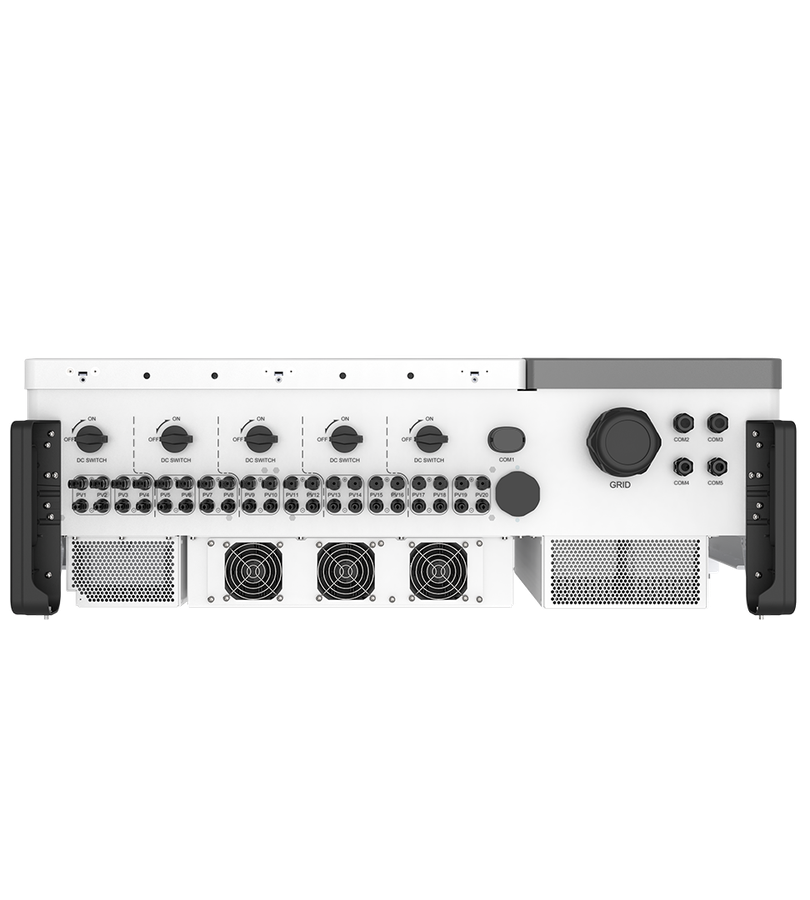

Solis S6-GC grid-tied inverter (80–125) kW · three-phase
Solis S6-GC (80–125 kW) is an ultra-high-power three-phase grid-tied inverter from the S6 series for industrial solar plants and large commercial (C&I) facilities. It features 6–8 MPPT trackers supporting an input current of up to 16 A per string, delivers a high efficiency of up to 98.6% and integrates intelligent AFCI protection along with advanced grid export control functions.
Models
1 / 4
1 / 4
Overview
Solis S6-GC (80–125 kW) is the flagship industrial-class three-phase grid-tied inverter of the sixth series (S6), built for powerful commercial and megawatt-scale solar power plants. The series is designed to minimise electricity costs for large industrial enterprises, plants, grain elevators, logistics parks and retail chains, and to operate under the feed-in tariff or in self-consumption mode.
The inverter feeds generation from the PV arrays directly into the site's three-phase grid without any batteries, delivering maximum economic efficiency and a fast project payback.
The model features a multi-channel MPPT system (up to 9–10 independent trackers) with high input current per string, making the most efficient use of complex roof geometries, compensating for shading and fully realising the potential of modern high-power and bifacial PV modules.
Solis S6-GC (80–125)K delivers efficiency of up to 98.7%, high resistance to environmental stress (IP66 ingress protection), integrated arc-fault protection (AFCI) and surge protection on the DC and AC sides. It supports Zero Export to limit energy fed into the external grid, the Anti-PID degradation-prevention function, dynamic reactive power control and monitoring through the SolisCloud platform.
Key specifications
-
Power range (kW)
80–125
-
Grid phases
Three-phase (380 V)
-
Number of MPPT trackers
6+ MPPT
-
Built-in monitoring
Wi-Fi, GPRS
Key features
-
Integrated meteorological equipment with intelligent alerts on system underperformance
-
AI-based millisecond arc-fault protection (AFCI) Innovation that never stops
-
Master-slave export power management solution: flexible, fast control with support for 10 devices in parallel
-
Two independent RS485 ports, perfectly suited to integration with third-party systems
-
Supports single- and multi-generator applications without an external generator controller
-
Real-time PV module earthing detection and protection
-
Coordinated arc-fault detection and RSD (rapid shutdown) for enhanced fire safety (optional)
-
Industry-first master-slave export power management plus three-phase unbalanced output control, on-demand power allocation per phase and flexible compatibility with a range of grids (optional)
Technical specifications
Models
SKU: S6-GC80K
DC input
- Maximum input voltage
- 1100 V
- Rated voltage
- 600 V
- Start-up voltage
- 180 V
- MPPT voltage range
- 160 - 1000 V
- Max. input current
- 4 × (42 A / 36 A)
- Max. input current
- 5 × (42 A / 36 A)
- Max. input current
- 5 × (42 A / 36 A)
- Max. input current
- 5 × (42 A / 36 A)
- Max. current at the DC input
- 4 × (42 A / 36 A)
- Max. current at the DC input
- 5 × (42 A / 36 A)
- Max. current at the DC input
- 5 × (42 A / 36 A)
- Max. current at the DC input
- 5 × (42 A / 36 A)
- Max. short-circuit current
- 8 × 50 A
- Max. short-circuit current
- 10 × 50 A
- Max. short-circuit current
- 10 × 50 A
- Max. short-circuit current
- 10 × 50 A
- Number of MPPTs / max. inputs per MPPT
- 8 / 16
- Number of MPPTs / max. inputs per MPPT
- 10 / 20
- Number of MPPTs / max. inputs per MPPT
- 10 / 20
- Number of MPPTs / max. inputs per MPPT
- 10 / 20
AC output
- Rated output power
- 80 kW
- Rated output power
- 100 kW
- Rated output power
- 110 kW
- Rated output power
- 125 kW
- Max. apparent output power
- 88 kVA
- Max. apparent output power
- 110 kVA
- Max. apparent output power
- 121 kVA
- Max. apparent output power
- 125 kVA
- Rated grid voltage
- 3/N/PE, 220 V / 380 V, 230 V / 400 V
- Rated grid frequency
- 50 Hz / 60 Hz
- Rated grid output current
- 121.6 A / 115.5 A
- Rated grid output current
- 152.0 A / 144.3 A
- Rated grid output current
- 167.1 A / 158.8 A
- Rated grid output current
- 189.9 A / 180.4 A
- Max. output current
- 133.7 A
- Max. output current
- 167.1 A
- Max. output current
- 183.8 A
- Max. output current
- 189.9 A
- Power factor
- > 0.99 (-0.8 to +0.8)
- THDi
- < 3%
Efficiency
- Maximum efficiency
- 98.7%
- European efficiency
- 98.3%
Protection
- DC reverse polarity protection
- Yes
- Short-circuit protection
- Yes
- Overcurrent protection
- Yes
- Surge protection
- DC type II / AC type II
- Grid monitoring
- Yes
- Anti-islanding protection
- Yes
- Temperature protection
- Yes
- String monitoring
- Yes
- I-V curve measurement
- Yes
- Night-time SVG function
- Yes
- Built-in AFCI 2.0 module
- Optional
- Built-in PID Recovery function
- Optional
- Built-in DC disconnector
- Yes
- Built-in AC disconnector
- Optional
- Built-in EPM function (< 10 units)
- Optional
General data
- Dimensions (W × H × D)
- 1014 × 567 × 345 mm
- Weight
- 93 kg
- Weight
- 96 kg
- Weight
- 96 kg
- Weight
- 96 kg
- Inverter topology
- Transformerless
- Self-consumption
- < 2 W
- Ambient operating temperature range
- -30 ~ +60°C
- Relative humidity
- 0 - 100%
- Ingress protection (IP)
- IP66
- Cooling method
- Intelligent fan cooling
- Max. operating altitude
- 4000 m
- Grid connection standard
- G99, IEC61727, EN50549-1/2, VDE4110
- Safety / EMC standard
- IEC/EN 62109-1/-2, IEC/EN 61000-6-2/-4
Features
- DC connection
- MC4 connector
- AC connection
- OT terminal (max. 240 mm²)
- Display
- LCD screen
- Communication
- RS485, optional: Wi-Fi, GPRS, PLC
Documentation and certificates
-
DownloadDatasheet
Мережевий інвертор Solis S6-GC (80–125) кВт · трифазний.pdf
-
DownloadUser manual
Мережевий інвертор Solis S6-GC (80–125) кВт · трифазний_інструкція.pdf
-
DownloadCertificate 1
Мережевий інвертор Solis S6-GC (80–125) кВт · трифазний_сертифікат1.pdf
-
Download
Certificate 2
Мережевий інвертор Solis S6-GC (80–125) кВт · трифазний_сертифікат2.pdf
-
Download
Certificate 3
Мережевий інвертор Solis S6-GC (80–125) кВт · трифазний_сертифікат3.pdf
-
Download
Certificate 4
Мережевий інвертор Solis S6-GC (80–125) кВт · трифазний_сертифікат4.pdf
-
Download
Certificate 5
Мережевий інвертор Solis S6-GC (80–125) кВт · трифазний_сертифікат5.pdf
-
Download
Certificate 6
Мережевий інвертор Solis S6-GC (80–125) кВт · трифазний_сертифікат6.pdf
-
Download
Certificate 7
Мережевий інвертор Solis S6-GC (80–125) кВт · трифазний_сертифікат7.pdf
Frequently asked questions
-
Start from the site's average daily consumption and the peak load the inverter has to carry in off-grid mode. The power range of each modification and the recommended PV array size for it are listed in the product card under "Key specifications" — for a precise selection, contact a Solis dealer or use the form below.
-
The list of validated batteries is published on the product page — in the compatible-equipment section, where one has already been compiled for that model. The voltage range (LV or HV, depending on the series) is stated in the technical specifications either way. If there is no list, or the battery you need is not on it, contact the Solis Ukraine technical department — compatibility should be confirmed separately.
-
Most Solis hybrid and off-grid inverters support connecting a generator with automatic start-up when the battery is discharged. Whether a specific model has this function, and how it is wired, is stated under "Key features" and in the "Technical specifications" table of the product card.
-
It depends on the series: single-phase models are designed for a 220 V grid, three-phase models for 380/400 V. The exact connection type for a given product is stated in the "Grid phases" card under "Key specifications".
-
Solis equipment carries the manufacturer's warranty, which in Ukraine is administered by official dealers and authorised service centres. The exact term and conditions are stated on the warranty card and on the device's rating plate — for registration and the claim procedure, see the Support section.
Didn't find your answer?
The Solis Ukraine technical department advises on equipment compatibility, wiring diagrams and system configuration.
