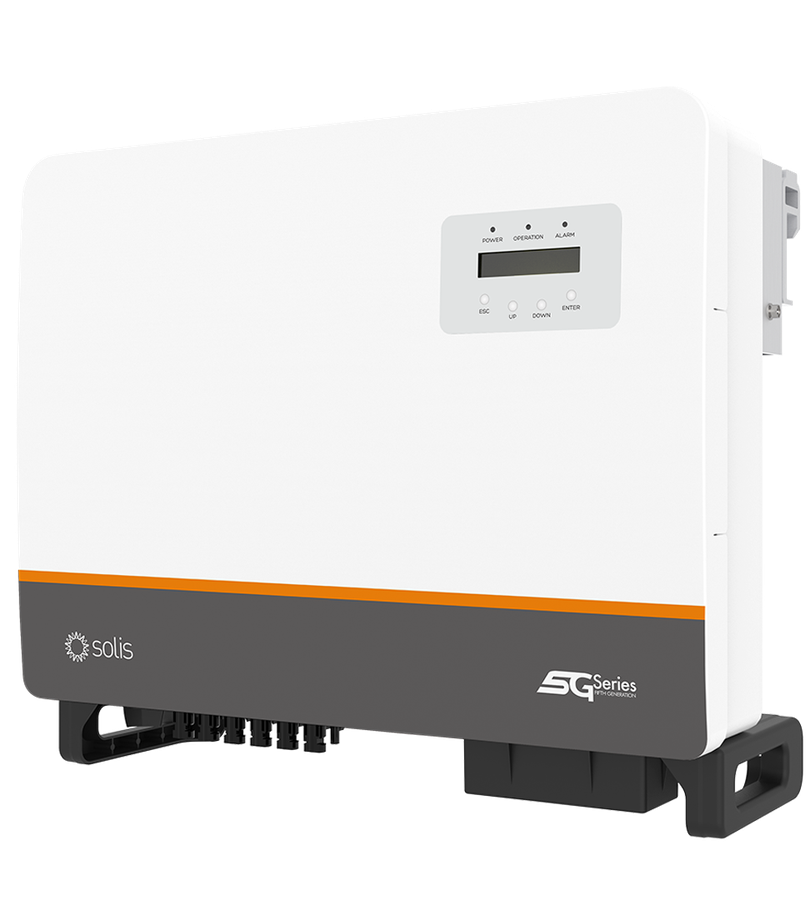

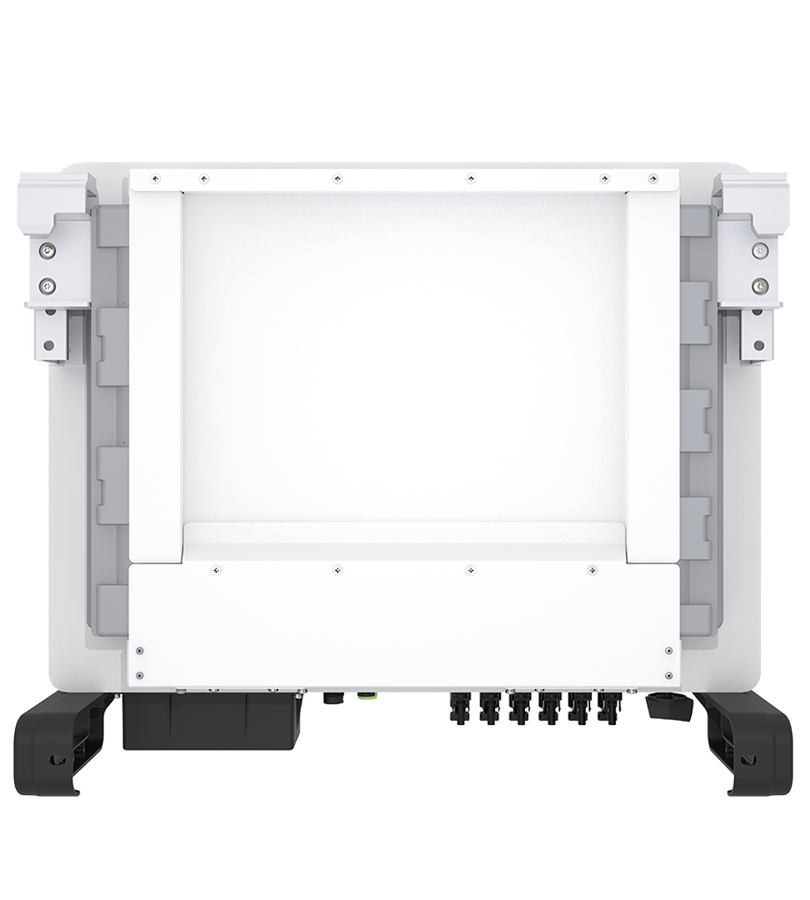

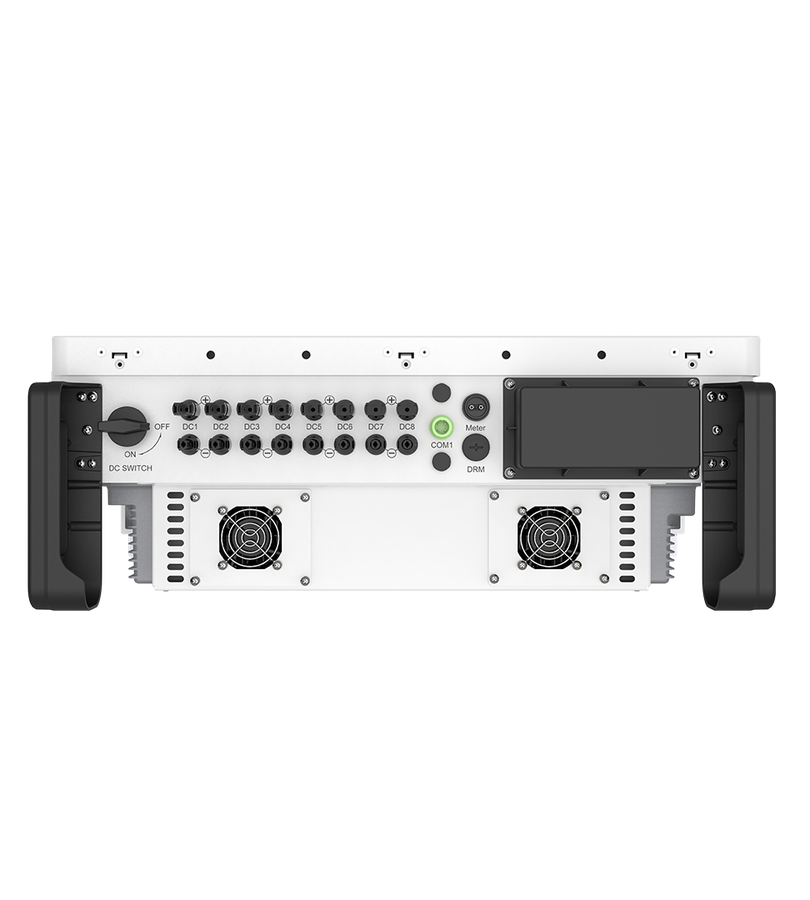

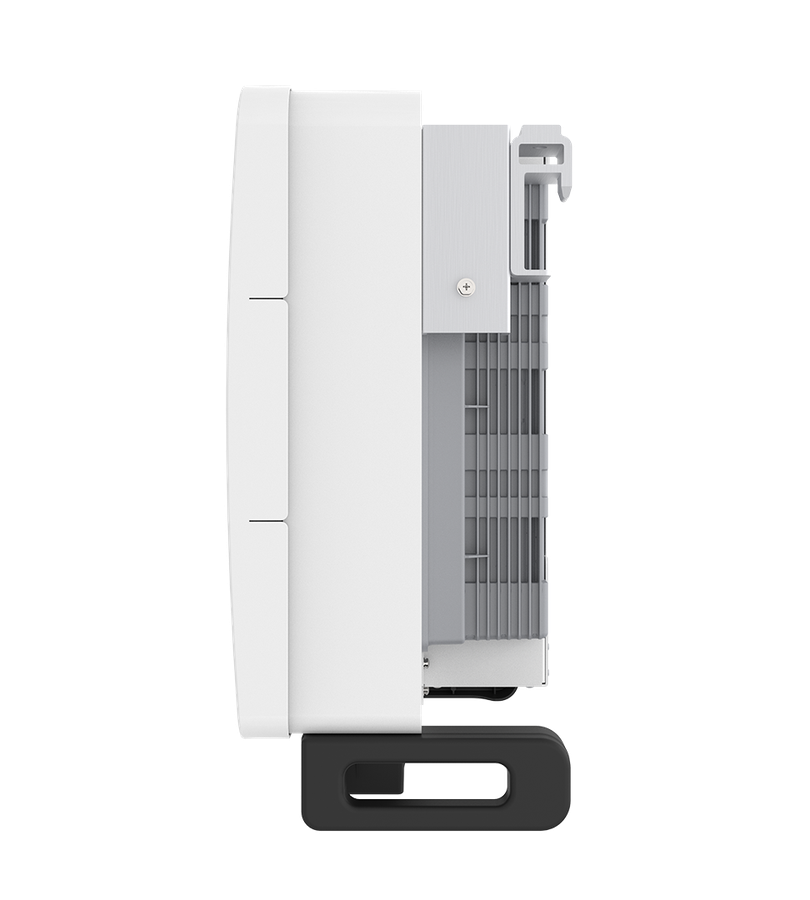

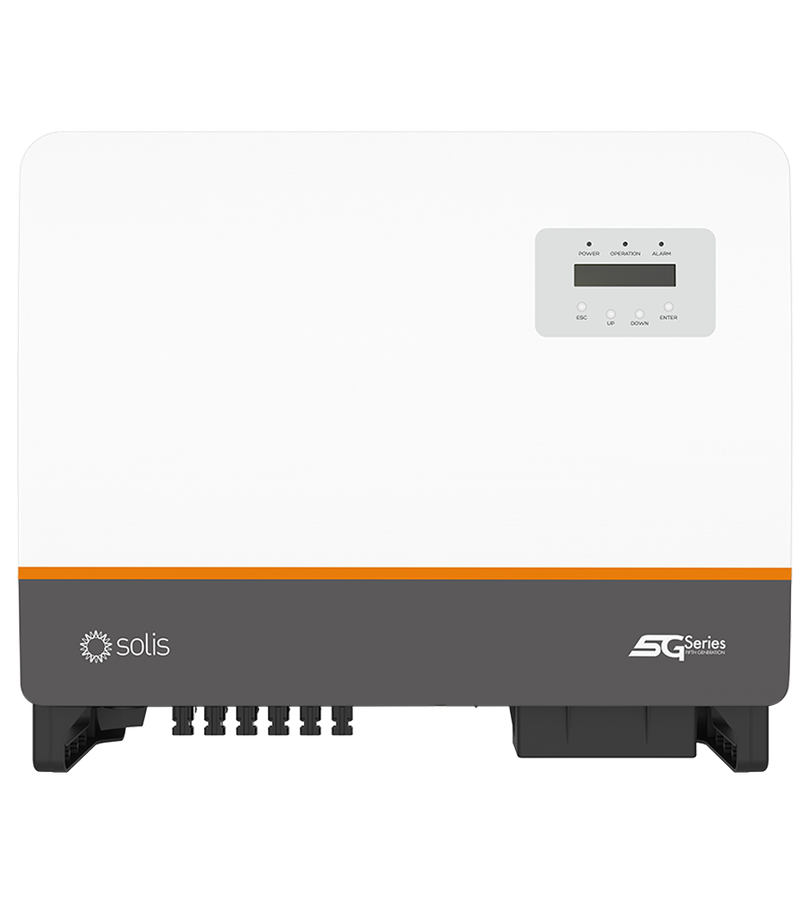

Solis S5-GC grid-tied inverter (25–40) kW · three-phase
Solis S5-GC (25–40 kW) is a three-phase grid-tied inverter from the S5 series for commercial solar power plants and large residential sites. It features 3–4 MPPT trackers supporting an input current of up to 32 A per tracker (for today's high-power panels), delivers an efficiency of up to 98.7% and supports intelligent AFCI protection together with the Zero Export function.
Models
1 / 5
1 / 5
Overview
Solis S5-GC (25–40 kW) is a commercial-class three-phase grid-tied inverter for solar power plants built for self-consumption or the feed-in tariff. It is the optimal choice for enterprises, warehouse complexes, shopping centres, vehicle service stations and private households with high consumption.
The device operates without batteries, converting solar energy directly into three-phase AC power for the site. This substantially reduces daytime grid electricity costs and ensures a fast payback without investing in expensive batteries.
The inverter has 3 or 4 independent MPPT trackers (depending on power rating) supporting input currents up to 32 A per MPPT. This ensures compatibility with large-format high-output PV modules and allows flexible module placement on roofs with complex geometry or mixed orientation.
Solis S5-GC offers efficiency of up to 98.5%, a low start-up voltage and a high IP66 ingress protection rating. It features arc-fault protection (AFCI), surge protection on the DC/AC sides, and supports Wi-Fi/GPRS monitoring and export limitation (Zero Export).
Key specifications
-
Power range (kW)
25–40
-
Grid phases
Three-phase (380 V)
-
Number of MPPT trackers
3–4 MPPT
-
Built-in monitoring
Wi-Fi, GPRS
Key features
-
Maximum efficiency 98.7%
-
3/4 MPPT design, suitable for multi-faceted roofs
-
AFCI protection actively reduces the risk of fire
-
Night-time recovery from potential induced degradation caused by negative voltage (optional)
-
Intelligent flow control and smart I-V curve scanning
-
24-hour monitoring of consumed load
-
IP66 models: S5-GC25K / S5-GC30K S5-GC33K / S5-GC36K S5-GC40K 360 degrees
Technical specifications
Models
SKU: S5-GC25K
DC input
- Recommended maximum input power
- 37.5 kW
- Recommended maximum input power
- 45 kW
- Recommended maximum input power
- 49.5 kW
- Recommended maximum input power
- 54 kW
- Recommended maximum input power
- 60 kW
- Maximum input voltage
- 1100 V
- Rated voltage
- 600 V
- Start-up voltage
- 180 V
- MPPT voltage range
- 200 - 1000 V
- Max. input current
- 32 A / 32 A / 32 A
- Max. input current
- 32 A / 32 A / 32 A
- Max. input current
- 32 A / 32 A / 32 A
- Max. input current
- 4 × 32 A
- Max. input current
- 4 × 32 A
- Max. short-circuit current
- 40 A / 40 A / 40 A
- Max. short-circuit current
- 40 A / 40 A / 40 A
- Max. short-circuit current
- 40 A / 40 A / 40 A
- Max. short-circuit current
- 4 × 40 A
- Max. short-circuit current
- 4 × 40 A
- Number of MPPTs / max. inputs per MPPT
- 3 / 6
- Number of MPPTs / max. inputs per MPPT
- 3 / 6
- Number of MPPTs / max. inputs per MPPT
- 3 / 6
- Number of MPPTs / max. inputs per MPPT
- 4 / 8
- Number of MPPTs / max. inputs per MPPT
- 4 / 8
AC output
- Rated output power
- 25 kW
- Rated output power
- 30 kW
- Rated output power
- 33 kW
- Rated output power
- 36 kW
- Rated output power
- 40 kW
- Max. apparent output power
- 27.5 kVA
- Max. apparent output power
- 33 kVA
- Max. apparent output power
- 36.3 kVA
- Max. apparent output power
- 39.6 kVA
- Max. apparent output power
- 44 kVA
- Rated grid voltage
- 3/N/PE, 220 V / 380 V, 230 V / 400 V
- Rated grid frequency
- 50 Hz / 60 Hz
- Rated grid output current
- 38.0 A / 36.1 A
- Rated grid output current
- 45.6 A / 43.3 A
- Rated grid output current
- 50.1 A / 47.6 A
- Rated grid output current
- 54.7 A / 52.0 A
- Rated grid output current
- 60.8 A / 57.7 A
- Max. output current
- 41.8 A
- Max. output current
- 50.2 A
- Max. output current
- 55.1 A
- Max. output current
- 60.2 A
- Max. output current
- 66.9 A
- Power factor
- > 0.99 (-0.8 to +0.8)
- THDi
- < 3%
Efficiency
- Maximum efficiency
- 98.5%
- Maximum efficiency
- 98.5%
- Maximum efficiency
- 98.6%
- Maximum efficiency
- 98.7%
- Maximum efficiency
- 98.7%
- European efficiency
- 98.1%
- European efficiency
- 98.1%
- European efficiency
- 98.2%
- European efficiency
- 98.3%
- European efficiency
- 98.3%
Protection
- DC reverse polarity protection
- Yes
- Short-circuit protection
- Yes
- Overcurrent protection
- Yes
- Surge protection
- DC type II / AC type II
- Grid monitoring
- Yes
- Anti-islanding protection
- Yes
- Temperature protection
- Yes
- String monitoring
- Yes
- I-V curve measurement
- Yes
- Multi-peak scanning
- Yes
- Built-in AFCI 2.0 module
- Optional
- Built-in PID Recovery function
- Optional
- Built-in DC disconnector
- Yes
General data
- Dimensions (W × H × D)
- 647 × 629 × 252 mm
- Weight
- 38.2 kg
- Weight
- 38.2 kg
- Weight
- 38.2 kg
- Weight
- 42.1 kg
- Weight
- 42.1 kg
- Inverter topology
- Transformerless
- Self-consumption
- < 1 W
- Ambient operating temperature range
- -25 ~ +60°C
- Relative humidity
- 0 - 100%
- Ingress protection (IP)
- IP66
- Noise level (typical)
- ≤ 60 dB(A)
- Cooling method
- Intelligent fan cooling
- Max. operating altitude
- 4000 m
Grid connection standard
- Safety / EMC standard
- IEC/EN 62109-1/-2, IEC/EN 61000-6-1/-2/-3/-4
Features
- DC connection
- MC4 connector
- AC connection
- OT terminal
- Display
- LCD screen
- Communication
- RS485, optional: Wi-Fi, GPRS
