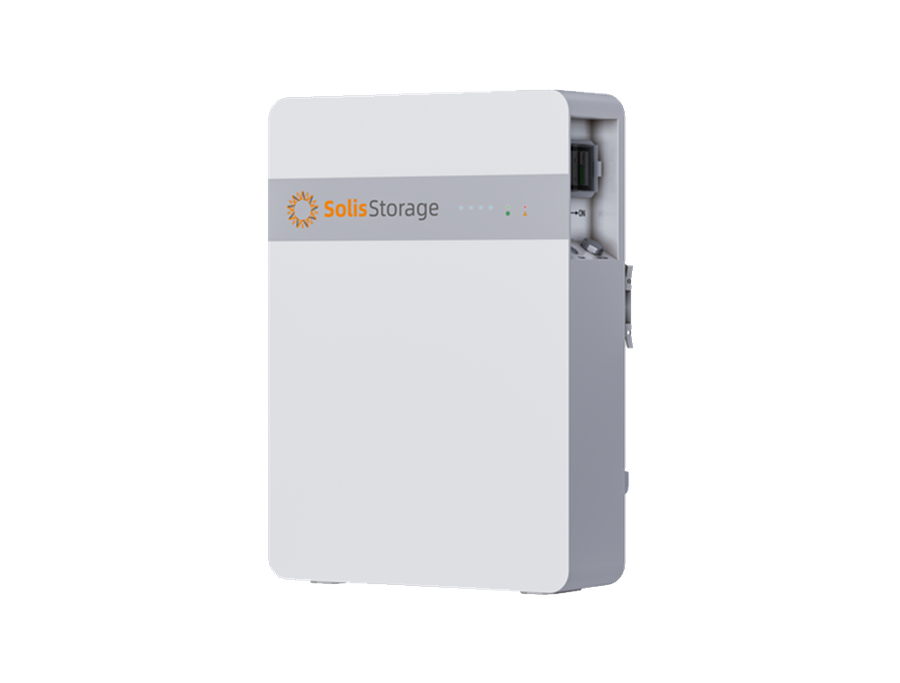

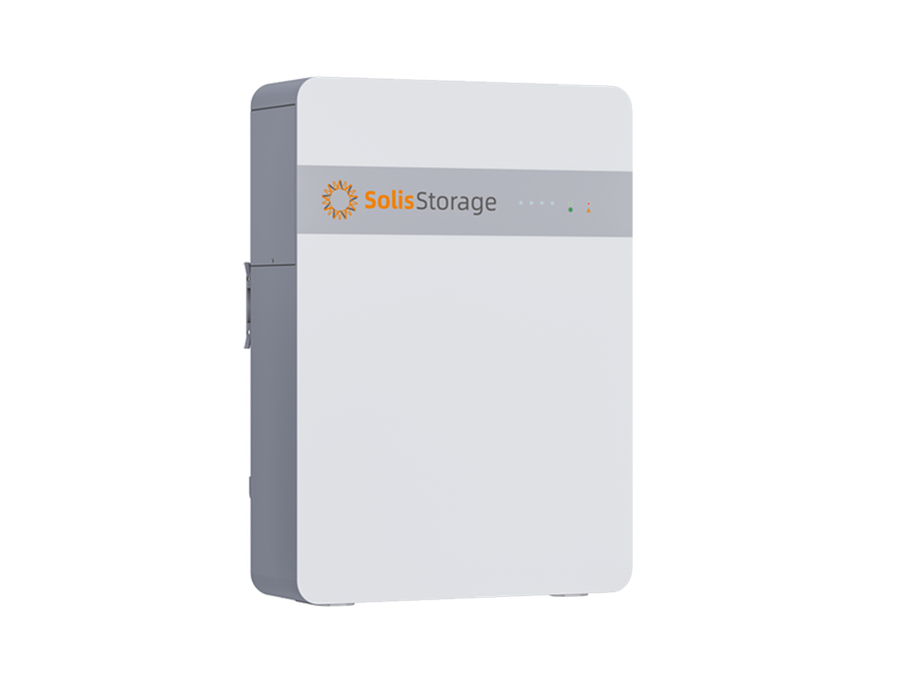

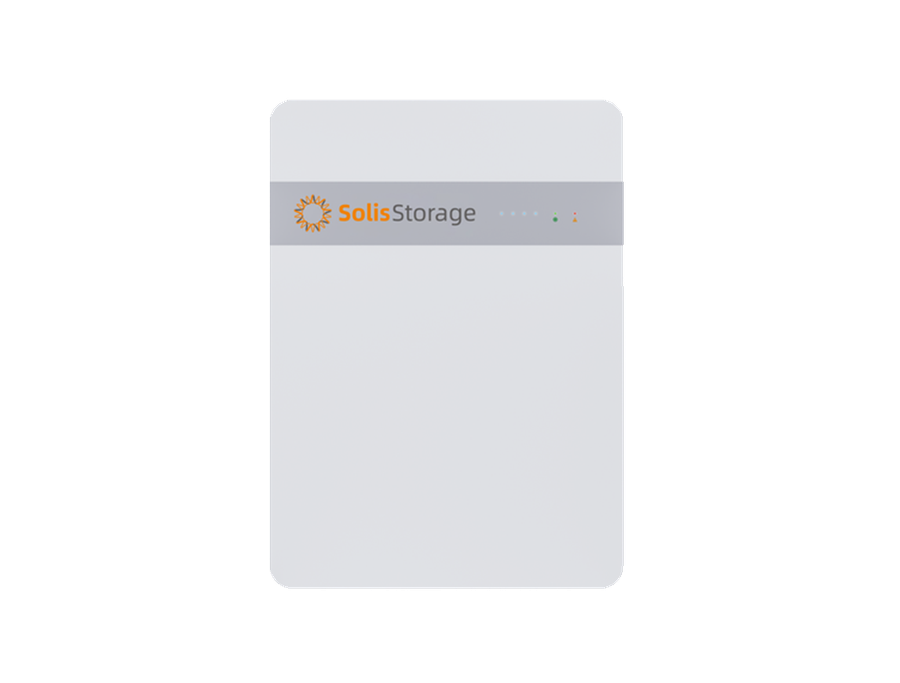

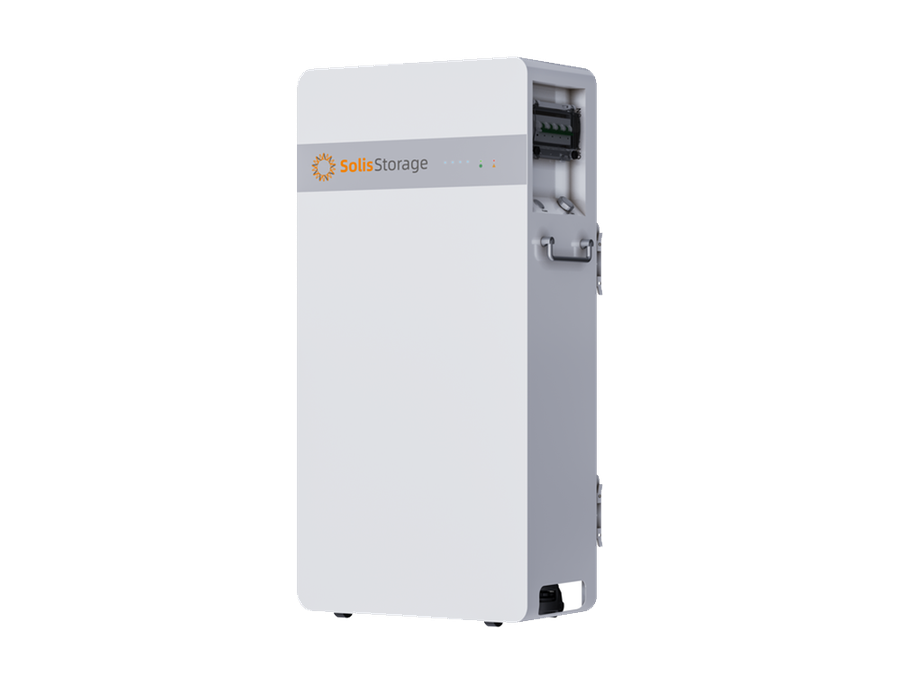

Solis IntelliHome battery 5–16 kWh · LV
Solis IntelliHome (5–16 kWh) is an intelligent modular low-voltage (LV) energy storage system for private homes, cottages and small commercial facilities. It combines high safety thanks to Grade A+ cells and a built-in fire suppression system with flexible capacity scaling up to 128 kWh.
Models
1 / 5
1 / 5
Overview
Solis IntelliHome (5–16 kWh) is a modern low-voltage (LV) energy storage system developed to build reliable, self-sufficient power systems for the residential and light-commercial sectors. Its modular concept allows capacity to be scaled from 5 to 16 kWh, so the configuration can be matched precisely to the needs of each site.
The storage unit is built around first-class Grade A+ cells based on LiFePO₄ (lithium iron phosphate) chemistry, delivering more than 6,000 operating cycles. For maximum protection of property and equipment, the system is fitted with integrated emergency fire suppression and multi-level BMS protection. An IP66-rated enclosure with a C5-M anti-corrosion coating allows the unit to operate in the harshest environments, while optional internal heating ensures stable charging and discharging even in frost down to -20 °C.
Solis IntelliHome is perfectly optimised for Solis hybrid inverters: it supports string currents up to 21 A, seamless transfer to backup in under 10 ms and 200% overload in off-grid mode. The Solis AI system algorithm manages energy flows intelligently and handles generator integration, while parallel connection of up to 8 units expands total stored energy to 128 kWh.
Key specifications
-
Storage capacity (kWh)
5–16
-
Battery voltage
Low voltage — LV (48 V)
Key features
-
Uses Grade A+ battery cells with a long service life of more than 6,000 charge-discharge cycles
-
Equipped with a built-in emergency fire-suppression system and multi-level protection for safe operation
-
Supports string input current of up to 21 A, ensuring compatibility with today's high-power PV modules
-
Makes efficient use of up to 160% PV array oversizing for maximum solar generation
-
Withstands up to 200% overload in off-grid mode, ensuring stable starting of heavy loads
-
Guarantees seamless switchover between grid and backup (under 10 ms) to protect sensitive equipment
-
IP66 ingress protection with a C5-M anti-corrosion coating, while optional heating allows operation down to -20 °C
-
Supports parallel connection of up to 8 units, scaling system capacity to 128 kWh
-
Integrated with the intelligent Solis AI system for optimal energy-flow management and genset interaction
-
Supports remote firmware updates (OTA) for convenient maintenance and monitoring
Technical specifications
Models
SKU: IntelliHome Battery 5kWh
Performance
- Battery type
- LiFePO4
- Rated capacity (energy)
- 5 kWh
- Rated capacity (energy)
- 10 kWh
- Rated capacity (energy)
- 16 kWh
- Operating voltage
- 44.8-57.6 V
- Cell capacity
- 100 A·h
- Cell capacity
- 100 A·h
- Cell capacity
- 314 A·h
- Recommended charge / discharge rate (C-rate)
- 0.5 C/0.5 C
- Max. charge / discharge rate (C-rate)
- 0.5 C/1 C
- Max. charge / discharge rate (C-rate)
- 0.5 C/1 C
- Max. charge / discharge rate (C-rate)
- 0.5 C/0.5 C
- Recommended charge / discharge current
- 50 A
- Recommended charge / discharge current
- 100 A
- Recommended charge / discharge current
- 157 A
- Max. discharge current
- 100 A
- Max. discharge current
- 200 A
- Max. discharge current
- 157 A
- Depth of discharge
- Max. 100% DOD
- Display
- SOC indicator, status indicator
- Communication
- CAN/RS485
- Cycle life
- ≥6000
Protection
- Overvoltage / undervoltage protection
- Yes
- Overcurrent protection
- Yes
- Over-temperature / under-temperature protection
- Yes
- DC circuit breaker
- Yes
- DC fuses
- Yes
- Aerogel thermal insulation plate
- Yes
- Fire suppression function
- Yes
- Explosion relief valves
- Yes
General data
- Dimensions (W × H × D)
- 470*655*175 mm
- Dimensions (W × H × D)
- 470*1075*175 mm
- Dimensions (W × H × D)
- 470*950*264 mm
- Weight
- 47 kg
- Weight
- 90 kg
- Weight
- 122 kg
- Cooling method
- Natural convection
- Ingress protection (IP)
- IP66
- Anti-corrosion protection class
- C5M
- Ambient operating temperature range
- -20~55 °C (Smart heating function)
- Storage temperature range
- -10~45 °C
- Relative humidity range
- 5~95 %
- Max. operating altitude
- 4000 m
- Mounting method
- Floor / wall mounting
- Scalability
- Up to 8 units in parallel
- Compatible inverters
- S6-EH2P(5-8)K02-SV-YD-L, S6-EH2P(9.6-16)K03-SV-YD-L-US, S6-EH3P(5-18)K02-NV-YD-L, S6-EH3P(7-10)K02-LV-YD-L,
- Certificates of conformity
- IEC 62619, IEC 63056, ISO13849, VDE 2510-50, UN 38.3, EN/IEC61000-6-1/2/3/4, IEC 60730-1, IEC 60529(IP), RoHS, REACH
Compatible equipment
Validated Solis hybrid inverters that match this battery's voltage and communication protocol.
Documentation and certificates
-
DownloadDatasheet
Акумуляторна батарея Solis IntelliHome 5–16 кВт·год · LV.pdf
-
DownloadUser manual 1
Акумуляторна батарея Solis IntelliHome 5–16 кВт·год · LV_інструкція1.pdf
-
Download
User manual 2
Акумуляторна батарея Solis IntelliHome 5–16 кВт·год · LV_інструкція2.pdf
-
Download
User manual 3
Акумуляторна батарея Solis IntelliHome 5–16 кВт·год · LV_інструкція3.pdf
-
Download
User manual 4
Акумуляторна батарея Solis IntelliHome 5–16 кВт·год · LV_інструкція4.pdf
-
Download
User manual 5
Акумуляторна батарея Solis IntelliHome 5–16 кВт·год · LV_інструкція5.pdf
-
DownloadCertificate 1
Акумуляторна батарея Solis IntelliHome 5–16 кВт·год · LV_сертифікат.pdf
-
Download
Certificate 2
Акумуляторна батарея Solis IntelliHome 5–16 кВт·год · LV_сертифікат2.pdf
-
Download
Certificate 3
Акумуляторна батарея Solis IntelliHome 5–16 кВт·год · LV_сертифікат3.pdf
-
Download
Certificate 4
Акумуляторна батарея Solis IntelliHome 5–16 кВт·год · LV_сертифікат4.pdf
-
Download
Certificate 5
Акумуляторна батарея Solis IntelliHome 5–16 кВт·год · LV_сертифікат5.pdf
-
Download
Certificate 6
Акумуляторна батарея Solis IntelliHome 5–16 кВт·год · LV_сертифікат6.pdf
-
Download
Certificate 7
Акумуляторна батарея Solis IntelliHome 5–16 кВт·год · LV_сертифікат7.pdf
-
Download
Certificate 8
Акумуляторна батарея Solis IntelliHome 5–16 кВт·год · LV_сертифікат8.pdf
-
Download
Certificate 9
Акумуляторна батарея Solis IntelliHome 5–16 кВт·год · LV_сертифікат9.pdf
-
Download
Certificate 10
Акумуляторна батарея Solis IntelliHome 5–16 кВт·год · LV_сертифікат10.pdf
-
Download
Certificate 11
Акумуляторна батарея Solis IntelliHome 5–16 кВт·год · LV_сертифікат11.pdf
-
Download
Certificate 12
Акумуляторна батарея Solis IntelliHome 5–16 кВт·год · LV_сертифікат12.pdf
-
Download
Certificate 13
Акумуляторна батарея Solis IntelliHome 5–16 кВт·год · LV_сертифікат16.pdf
-
Download
Certificate 14
Акумуляторна батарея Solis IntelliHome 5–16 кВт·год · LV_сертифікат17.pdf
-
Download
Certificate 15
Акумуляторна батарея Solis IntelliHome 5–16 кВт·год · LV_сертифікат18.pdf
Frequently asked questions
-
Start from the site's average daily consumption and the peak load the inverter has to carry in off-grid mode. The power range of each modification and the recommended PV array size for it are listed in the product card under "Key specifications" — for a precise selection, contact a Solis dealer or use the form below.
-
The list of validated batteries is published on the product page — in the compatible-equipment section, where one has already been compiled for that model. The voltage range (LV or HV, depending on the series) is stated in the technical specifications either way. If there is no list, or the battery you need is not on it, contact the Solis Ukraine technical department — compatibility should be confirmed separately.
-
Most Solis hybrid and off-grid inverters support connecting a generator with automatic start-up when the battery is discharged. Whether a specific model has this function, and how it is wired, is stated under "Key features" and in the "Technical specifications" table of the product card.
-
It depends on the series: single-phase models are designed for a 220 V grid, three-phase models for 380/400 V. The exact connection type for a given product is stated in the "Grid phases" card under "Key specifications".
-
Solis equipment carries the manufacturer's warranty, which in Ukraine is administered by official dealers and authorised service centres. The exact term and conditions are stated on the warranty card and on the device's rating plate — for registration and the claim procedure, see the Support section.
